Datapoints for he4 + tl223 -> n + bi226
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.261738e-229 |
| 0.2 | 3.041914e-173 |
| 0.3 | 1.799166e-117 |
| 0.4 | 4.709226e-90 |
| 0.5 | 7.860868e-74 |
| 0.6 | 4.068398e-63 |
| 0.7 | 1.691297e-55 |
| 0.8 | 8.795090e-50 |
| 0.9 | 2.578072e-45 |
| 1 | 1.038345e-41 |
| 1.5 | 1.958638e-30 |
| 2 | 3.939093e-24 |
| 2.5 | 7.771305e-20 |
| 3 | 1.335479e-16 |
| 3.5 | 5.040816e-14 |
| 4 | 6.685932e-12 |
| 4.5 | 4.089723e-10 |
| 5 | 1.372057e-08 |
| 6 | 3.969704e-06 |
| 7 | 3.031987e-04 |
| 8 | 8.945211e-03 |
| 9 | 1.318538e-01 |
| 10 | 1.169910e+00 |

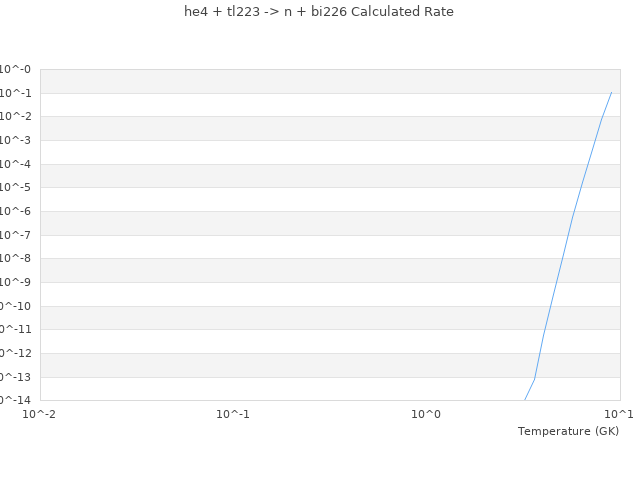

| View Graph | |
