Datapoints for f16 -> p + o15
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.928252e+05 |
| 0.15 | 2.128975e+06 |
| 0.2 | 7.732589e+06 |
| 0.3 | 3.898100e+07 |
| 0.4 | 1.215182e+08 |
| 0.5 | 3.020724e+08 |
| 0.6 | 6.515361e+08 |
| 0.7 | 1.269809e+09 |
| 0.8 | 2.290193e+09 |
| 0.9 | 3.883189e+09 |
| 1 | 6.259650e+09 |
| 1.5 | 4.037722e+10 |
| 2 | 1.520985e+11 |
| 2.5 | 4.215296e+11 |
| 3 | 9.608207e+11 |
| 3.5 | 1.915891e+12 |
| 4 | 3.469241e+12 |
| 4.5 | 5.843680e+12 |
| 5 | 9.306530e+12 |
| 6 | 2.081402e+13 |
| 7 | 4.116427e+13 |
| 8 | 7.441894e+13 |
| 9 | 1.254650e+14 |
| 10 | 1.997716e+14 |

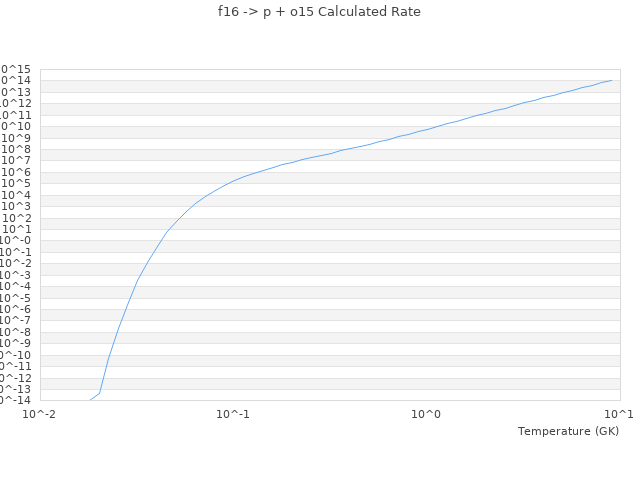

| View Graph | |
