Datapoints for ne20 -> p + f19
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-319 |
| 0.3 | 1.293806e-208 |
| 0.4 | 3.337458e-153 |
| 0.5 | 7.835242e-120 |
| 0.6 | 1.653338e-97 |
| 0.7 | 1.592691e-81 |
| 0.8 | 1.617438e-69 |
| 0.9 | 3.613085e-60 |
| 1 | 1.105833e-52 |
| 1.5 | 3.473203e-30 |
| 2 | 6.609024e-19 |
| 2.5 | 4.021789e-12 |
| 3 | 1.374065e-07 |
| 3.5 | 2.420166e-04 |
| 4 | 6.665828e-02 |
| 4.5 | 5.321085e+00 |
| 5 | 1.783189e+02 |
| 6 | 3.520223e+04 |
| 7 | 1.561630e+06 |
| 8 | 2.719033e+07 |
| 9 | 2.534216e+08 |
| 10 | 1.523532e+09 |

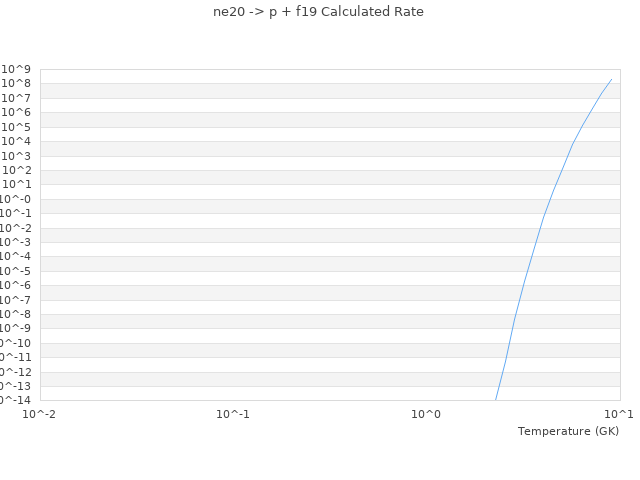

| View Graph | |
