Datapoints for ne21 -> p + f20
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-323 |
| 0.3 | 3.314363e-212 |
| 0.4 | 1.971184e-156 |
| 0.5 | 8.095448e-123 |
| 0.6 | 2.573552e-100 |
| 0.7 | 3.516387e-84 |
| 0.8 | 4.918157e-72 |
| 0.9 | 1.481596e-62 |
| 1 | 6.001781e-55 |
| 1.5 | 5.990254e-32 |
| 2 | 2.656942e-20 |
| 2.5 | 3.090885e-13 |
| 3 | 1.774866e-08 |
| 3.5 | 4.813480e-05 |
| 4 | 1.917394e-02 |
| 4.5 | 2.111756e+00 |
| 5 | 9.408037e+01 |
| 6 | 3.007380e+04 |
| 7 | 1.965632e+06 |
| 8 | 4.650723e+07 |
| 9 | 5.464697e+08 |
| 10 | 3.850997e+09 |

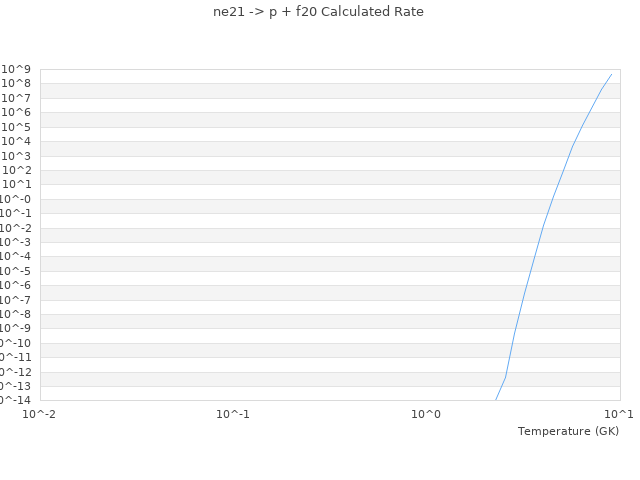

| View Graph | |
