Datapoints for ne23 -> p + f22
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 5.561732e-250 |
| 0.4 | 7.961406e-185 |
| 0.5 | 1.394210e-145 |
| 0.6 | 2.514315e-119 |
| 0.7 | 1.650619e-100 |
| 0.8 | 2.370677e-86 |
| 0.9 | 2.621403e-75 |
| 1 | 1.896995e-66 |
| 1.5 | 1.085149e-39 |
| 2 | 3.677817e-26 |
| 2.5 | 5.830412e-18 |
| 3 | 1.930610e-12 |
| 3.5 | 1.849441e-08 |
| 4 | 1.917160e-05 |
| 4.5 | 4.484411e-03 |
| 5 | 3.681370e-01 |
| 6 | 3.008717e+02 |
| 7 | 3.941028e+04 |
| 8 | 1.603168e+06 |
| 9 | 2.919950e+07 |
| 10 | 2.961616e+08 |

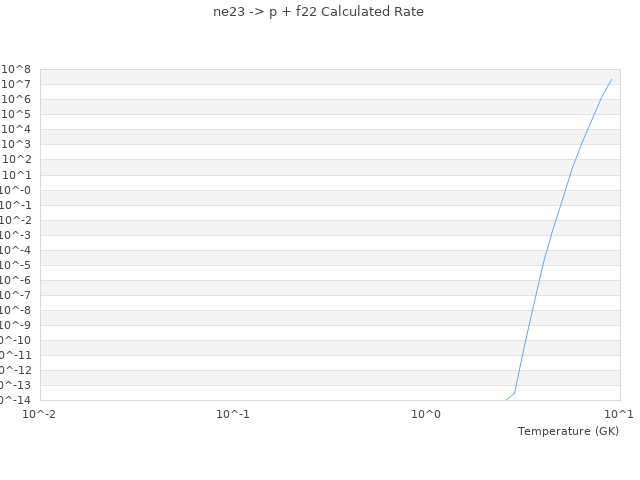

| View Graph | |
