Datapoints for ne24 -> he4 + o20
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-313 |
| 0.3 | 2.298012e-207 |
| 0.4 | 7.942604e-154 |
| 0.5 | 1.991094e-121 |
| 0.6 | 1.174312e-99 |
| 0.7 | 5.432007e-84 |
| 0.8 | 3.671857e-72 |
| 0.9 | 6.692237e-63 |
| 1 | 1.902848e-55 |
| 1.5 | 9.318740e-33 |
| 2 | 3.844783e-21 |
| 2.5 | 4.882571e-14 |
| 3 | 3.172205e-09 |
| 3.5 | 9.708886e-06 |
| 4 | 4.302381e-03 |
| 4.5 | 5.184032e-01 |
| 5 | 2.487515e+01 |
| 6 | 8.887280e+03 |
| 7 | 6.285332e+05 |
| 8 | 1.586521e+07 |
| 9 | 1.989640e+08 |
| 10 | 1.514220e+09 |

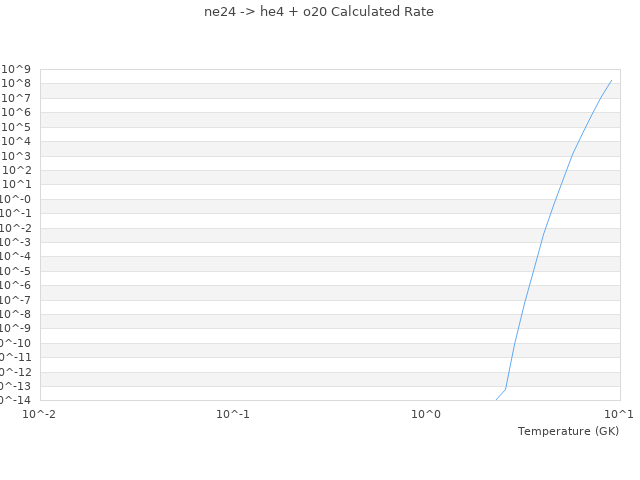

| View Graph | |
