Datapoints for na20 -> he4 + f16
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.044235e-223 |
| 0.2 | 8.979677e-168 |
| 0.3 | 5.132504e-111 |
| 0.4 | 4.393740e-82 |
| 0.5 | 2.027470e-64 |
| 0.6 | 1.867911e-52 |
| 0.7 | 8.770465e-44 |
| 0.8 | 3.430000e-37 |
| 0.9 | 5.340196e-32 |
| 1 | 8.522004e-28 |
| 1.5 | 7.836722e-15 |
| 2 | 4.630804e-08 |
| 2.5 | 7.433161e-04 |
| 3 | 5.700468e-01 |
| 3.5 | 7.365758e+01 |
| 4 | 3.053919e+03 |
| 4.5 | 5.851786e+04 |
| 5 | 6.474751e+05 |
| 6 | 2.589845e+07 |
| 7 | 3.892622e+08 |
| 8 | 3.127045e+09 |
| 9 | 1.638447e+10 |
| 10 | 6.319894e+10 |

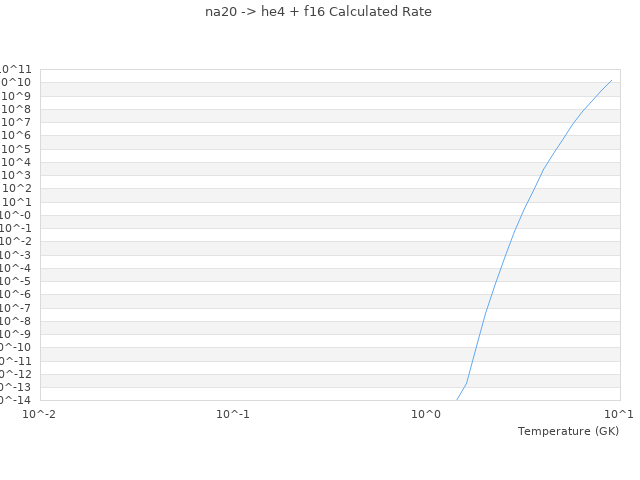

| View Graph | |
