Datapoints for na21 -> he4 + f17
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 7.123273e-232 |
| 0.2 | 2.061007e-173 |
| 0.3 | 3.718029e-114 |
| 0.4 | 5.389953e-84 |
| 0.5 | 1.320152e-65 |
| 0.6 | 3.633555e-53 |
| 0.7 | 3.681562e-44 |
| 0.8 | 2.540423e-37 |
| 0.9 | 6.110278e-32 |
| 1 | 1.373859e-27 |
| 1.5 | 3.406091e-14 |
| 2 | 3.209421e-07 |
| 2.5 | 6.725624e-03 |
| 3 | 6.119644e+00 |
| 3.5 | 8.902146e+02 |
| 4 | 4.025795e+04 |
| 4.5 | 8.243644e+05 |
| 5 | 9.612551e+06 |
| 6 | 4.156009e+08 |
| 7 | 6.600326e+09 |
| 8 | 5.524548e+10 |
| 9 | 2.987922e+11 |
| 10 | 1.181746e+12 |

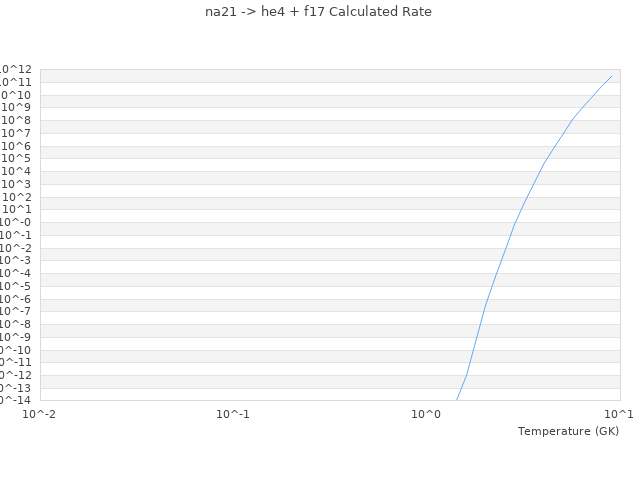

| View Graph | |
