Datapoints for na22 -> he4 + f18
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 3.576388e-297 |
| 0.2 | 1.325989e-222 |
| 0.3 | 3.098551e-147 |
| 0.4 | 5.193236e-109 |
| 0.5 | 8.859623e-86 |
| 0.6 | 4.161795e-70 |
| 0.7 | 8.630515e-59 |
| 0.8 | 3.234173e-50 |
| 0.9 | 1.742771e-43 |
| 1 | 4.720283e-38 |
| 1.5 | 2.048606e-21 |
| 2 | 7.966897e-13 |
| 2.5 | 1.524356e-07 |
| 3 | 5.934788e-04 |
| 3.5 | 2.392984e-01 |
| 4 | 2.287055e+01 |
| 4.5 | 8.266549e+02 |
| 5 | 1.501540e+04 |
| 6 | 1.232361e+06 |
| 7 | 3.032928e+07 |
| 8 | 3.495696e+08 |
| 9 | 2.426194e+09 |
| 10 | 1.181095e+10 |

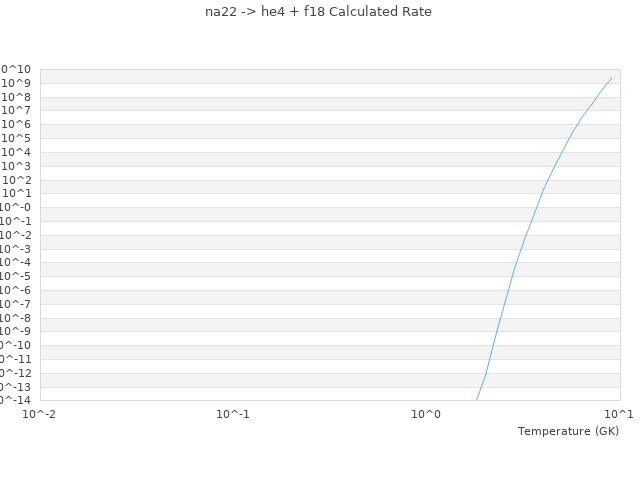

| View Graph | |
