Datapoints for na23 -> he4 + f19
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.555458e-270 |
| 0.3 | 1.638963e-178 |
| 0.4 | 5.944373e-132 |
| 0.5 | 1.021756e-103 |
| 0.6 | 1.037198e-84 |
| 0.7 | 5.155747e-71 |
| 0.8 | 1.169465e-60 |
| 0.9 | 1.522223e-52 |
| 1 | 5.232100e-46 |
| 1.5 | 4.313699e-26 |
| 2 | 6.688569e-16 |
| 2.5 | 1.097922e-09 |
| 3 | 1.716945e-05 |
| 3.5 | 1.816019e-02 |
| 4 | 3.509325e+00 |
| 4.5 | 2.166131e+02 |
| 5 | 5.991791e+03 |
| 6 | 9.163633e+05 |
| 7 | 3.526584e+07 |
| 8 | 5.754896e+08 |
| 9 | 5.330159e+09 |
| 10 | 3.338632e+10 |

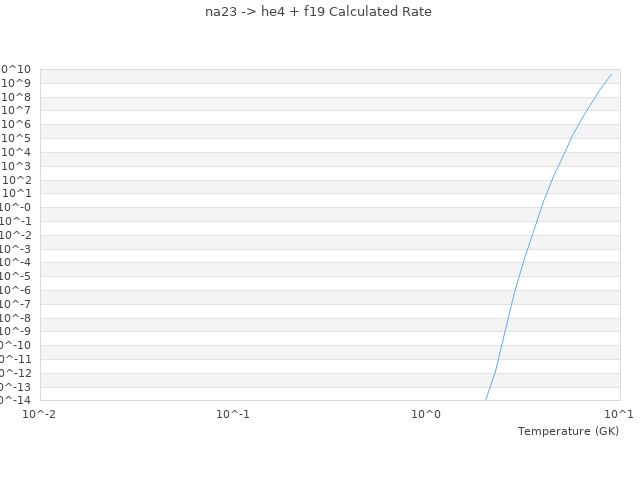

| View Graph | |
