Datapoints for na24 -> he4 + f20
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 2.658301e-281 |
| 0.3 | 3.522851e-186 |
| 0.4 | 4.616437e-138 |
| 0.5 | 6.953308e-109 |
| 0.6 | 3.051986e-89 |
| 0.7 | 4.385507e-75 |
| 0.8 | 2.236756e-64 |
| 0.9 | 5.537798e-56 |
| 1 | 3.220179e-49 |
| 1.5 | 1.435363e-28 |
| 2 | 5.868229e-18 |
| 2.5 | 1.878375e-11 |
| 3 | 4.869581e-07 |
| 3.5 | 7.712657e-04 |
| 4 | 2.079662e-01 |
| 4.5 | 1.699226e+01 |
| 5 | 5.969012e+02 |
| 6 | 1.336527e+05 |
| 7 | 6.812121e+06 |
| 8 | 1.360708e+08 |
| 9 | 1.445325e+09 |
| 10 | 9.818731e+09 |

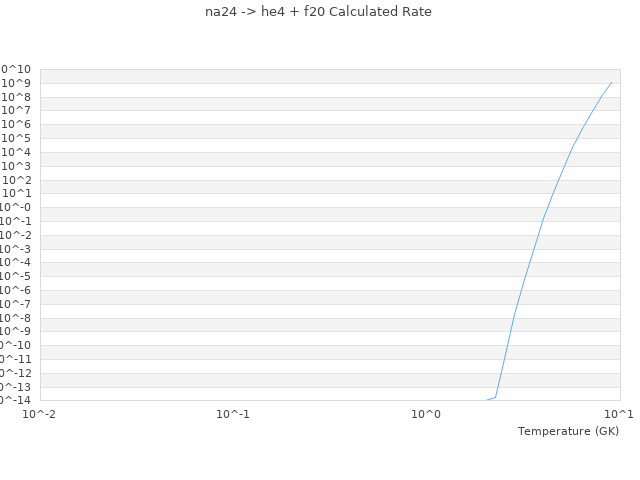

| View Graph | |
