Datapoints for na26 -> he4 + f22
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-314 |
| 0.3 | 4.698900e-208 |
| 0.4 | 1.699597e-154 |
| 0.5 | 4.669508e-122 |
| 0.6 | 3.042562e-100 |
| 0.7 | 1.548982e-84 |
| 0.8 | 1.143930e-72 |
| 0.9 | 2.259453e-63 |
| 1 | 6.908638e-56 |
| 1.5 | 4.442014e-33 |
| 2 | 2.182688e-21 |
| 2.5 | 3.131473e-14 |
| 3 | 2.230016e-09 |
| 3.5 | 7.345843e-06 |
| 4 | 3.463619e-03 |
| 4.5 | 4.407588e-01 |
| 5 | 2.222463e+01 |
| 6 | 8.684961e+03 |
| 7 | 6.664418e+05 |
| 8 | 1.814935e+07 |
| 9 | 2.443383e+08 |
| 10 | 1.985918e+09 |

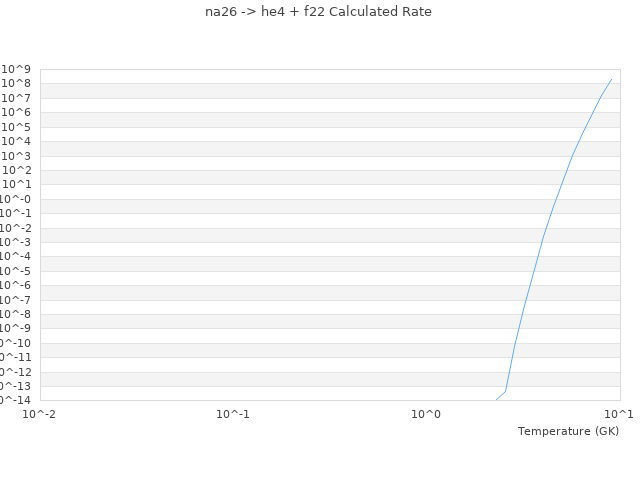

| View Graph | |
