Datapoints for b13 -> he4 + li9
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 2.498861e-269 |
| 0.3 | 1.787290e-176 |
| 0.4 | 8.686841e-130 |
| 0.5 | 1.242096e-101 |
| 0.6 | 8.970309e-83 |
| 0.7 | 3.034507e-69 |
| 0.8 | 4.680677e-59 |
| 0.9 | 4.213380e-51 |
| 1 | 1.025284e-44 |
| 1.5 | 2.153354e-25 |
| 2 | 1.345371e-15 |
| 2.5 | 1.187981e-09 |
| 3 | 1.202691e-05 |
| 3.5 | 9.313395e-03 |
| 4 | 1.433245e+00 |
| 4.5 | 7.470163e+01 |
| 5 | 1.818215e+03 |
| 6 | 2.328004e+05 |
| 7 | 7.934887e+06 |
| 8 | 1.171182e+08 |
| 9 | 9.812134e+08 |
| 10 | 5.488191e+09 |

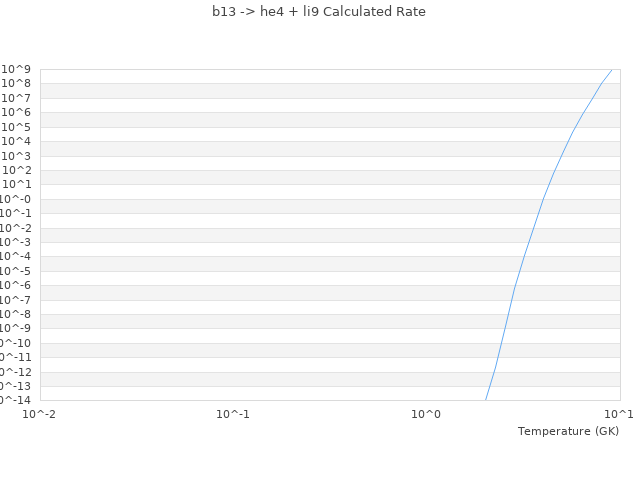

| View Graph | |
