Datapoints for n17 -> he4 + b13
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.471913e-280 |
| 0.3 | 2.275818e-184 |
| 0.4 | 6.614258e-136 |
| 0.5 | 1.265512e-106 |
| 0.6 | 5.618455e-87 |
| 0.7 | 7.372523e-73 |
| 0.8 | 3.276194e-62 |
| 0.9 | 6.924457e-54 |
| 1 | 3.413952e-47 |
| 1.5 | 7.058194e-27 |
| 2 | 1.586578e-16 |
| 2.5 | 3.223655e-10 |
| 3 | 5.889054e-06 |
| 3.5 | 7.090942e-03 |
| 4 | 1.537522e+00 |
| 4.5 | 1.053908e+02 |
| 5 | 3.208419e+03 |
| 6 | 5.789533e+05 |
| 7 | 2.535282e+07 |
| 8 | 4.531922e+08 |
| 9 | 4.421286e+09 |
| 10 | 2.803810e+10 |

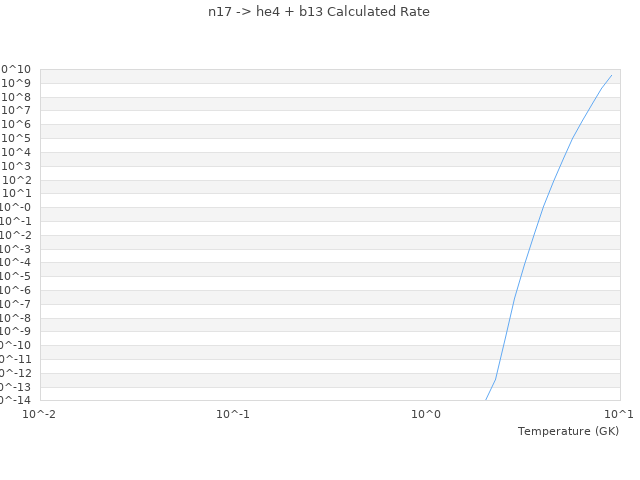

| View Graph | |
