Datapoints for he4 + b13 -> n17
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.399617e-16 |
| 0.15 | 1.622633e-12 |
| 0.2 | 1.998177e-10 |
| 0.3 | 7.185384e-08 |
| 0.4 | 2.803718e-06 |
| 0.5 | 3.744241e-05 |
| 0.6 | 2.679674e-04 |
| 0.7 | 1.279939e-03 |
| 0.8 | 4.614248e-03 |
| 0.9 | 1.353983e-02 |
| 1 | 3.398039e-02 |
| 1.5 | 8.103399e-01 |
| 2 | 5.446238e+00 |
| 2.5 | 1.979068e+01 |
| 3 | 5.065400e+01 |
| 3.5 | 1.040298e+02 |
| 4 | 1.842961e+02 |
| 4.5 | 2.941803e+02 |
| 5 | 4.350527e+02 |
| 6 | 8.104691e+02 |
| 7 | 1.305725e+03 |
| 8 | 1.908687e+03 |
| 9 | 2.601325e+03 |
| 10 | 3.359668e+03 |

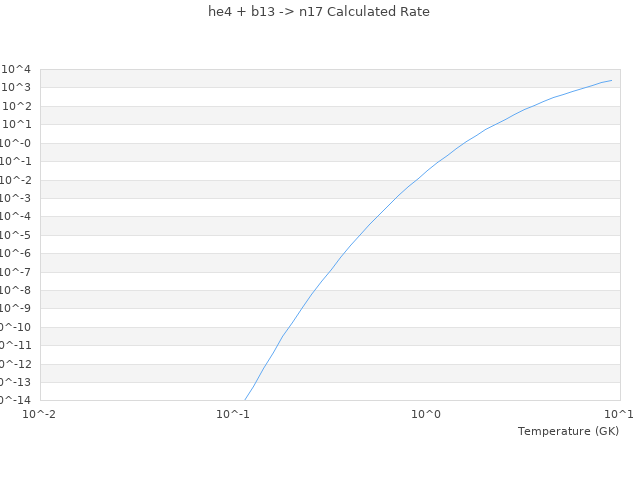

| View Graph | |
