Datapoints for p30 -> he4 + al-6
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.488391e-275 |
| 0.3 | 1.077941e-182 |
| 0.4 | 1.340172e-135 |
| 0.5 | 5.497934e-107 |
| 0.6 | 1.074400e-87 |
| 0.7 | 8.947083e-74 |
| 0.8 | 3.090357e-63 |
| 0.9 | 5.719609e-55 |
| 1 | 2.656493e-48 |
| 1.5 | 6.327477e-28 |
| 2 | 1.964518e-17 |
| 2.5 | 5.485856e-11 |
| 3 | 1.334688e-06 |
| 3.5 | 2.074291e-03 |
| 4 | 5.650854e-01 |
| 4.5 | 4.757025e+01 |
| 5 | 1.744145e+03 |
| 6 | 4.342856e+05 |
| 7 | 2.476393e+07 |
| 8 | 5.468403e+08 |
| 9 | 6.265733e+09 |
| 10 | 4.439447e+10 |

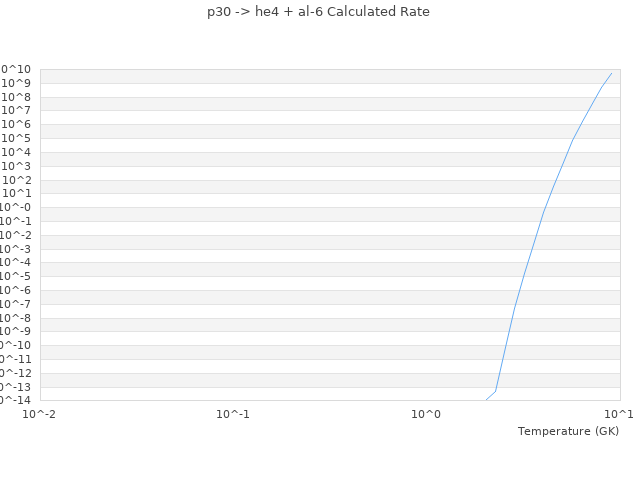

| View Graph | |
