Datapoints for he4 + mg23 -> p + al-6
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.745752e-30 |
| 0.15 | 1.154150e-23 |
| 0.2 | 9.544945e-20 |
| 0.3 | 6.596287e-15 |
| 0.4 | 7.047432e-12 |
| 0.5 | 9.899520e-10 |
| 0.6 | 4.266181e-08 |
| 0.7 | 8.553500e-07 |
| 0.8 | 1.007657e-05 |
| 0.9 | 8.048365e-05 |
| 1 | 4.786315e-04 |
| 1.5 | 2.397694e-01 |
| 2 | 1.086975e+01 |
| 2.5 | 1.510587e+02 |
| 3 | 1.056940e+03 |
| 3.5 | 4.763270e+03 |
| 4 | 1.587712e+04 |
| 4.5 | 4.259323e+04 |
| 5 | 9.715188e+04 |
| 6 | 3.568573e+05 |
| 7 | 9.504754e+05 |
| 8 | 2.036781e+06 |
| 9 | 3.737064e+06 |
| 10 | 6.107980e+06 |

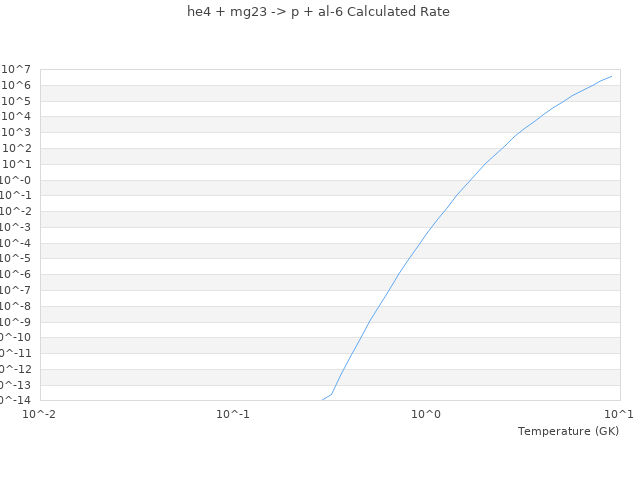

| View Graph | |
