Datapoints for p + nb77 -> he4 + zr74
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.117126e-216 |
| 0.15 | 7.566113e-152 |
| 0.2 | 1.137091e-119 |
| 0.3 | 6.278415e-87 |
| 0.4 | 9.058002e-70 |
| 0.5 | 7.020516e-59 |
| 0.6 | 3.388615e-51 |
| 0.7 | 2.113099e-45 |
| 0.8 | 7.901700e-41 |
| 0.9 | 4.223546e-37 |
| 1 | 5.498531e-34 |
| 1.5 | 1.130867e-23 |
| 2 | 1.009651e-17 |
| 2.5 | 9.174773e-14 |
| 3 | 6.643893e-11 |
| 3.5 | 1.013953e-08 |
| 4 | 5.511702e-07 |
| 4.5 | 1.453612e-05 |
| 5 | 2.257410e-04 |
| 6 | 1.774092e-02 |
| 7 | 4.924940e-01 |
| 8 | 6.562592e+00 |
| 9 | 4.951511e+01 |
| 10 | 2.321200e+02 |

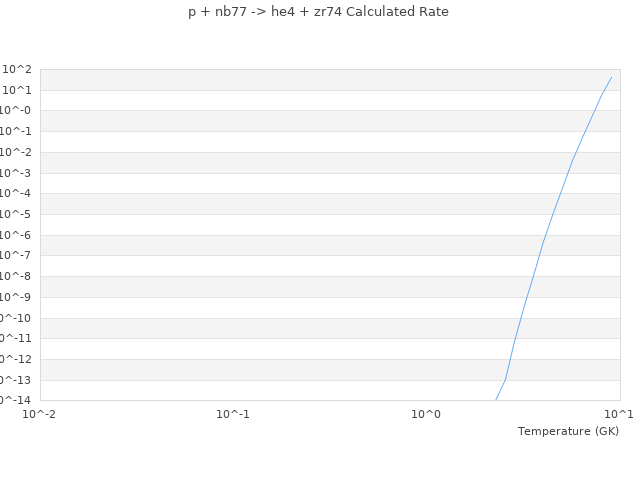

| View Graph | |
