Datapoints for he4 + zr74 -> p + nb77
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.705482e-101 |
| 0.15 | 1.117613e-74 |
| 0.2 | 7.312702e-62 |
| 0.3 | 1.757910e-48 |
| 0.4 | 5.291894e-41 |
| 0.5 | 6.376862e-36 |
| 0.6 | 4.130788e-32 |
| 0.7 | 4.416255e-29 |
| 0.8 | 1.391385e-26 |
| 0.9 | 1.811240e-24 |
| 1 | 1.207266e-22 |
| 1.5 | 3.332273e-16 |
| 2 | 3.446569e-12 |
| 2.5 | 2.158454e-09 |
| 3 | 2.627390e-07 |
| 3.5 | 1.121875e-05 |
| 4 | 2.346016e-04 |
| 4.5 | 2.943122e-03 |
| 5 | 2.522445e-02 |
| 6 | 8.127643e-01 |
| 7 | 1.193443e+01 |
| 8 | 9.863599e+01 |
| 9 | 5.132807e+02 |
| 10 | 1.787539e+03 |

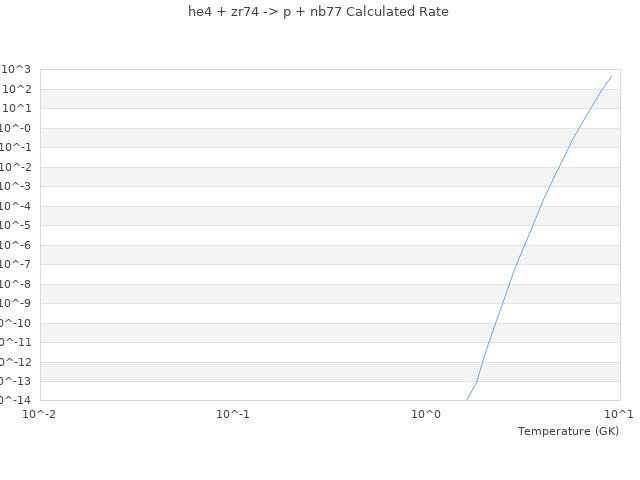

| View Graph | |
