Datapoints for p + kr77 -> he4 + br74
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.349180e-113 |
| 0.15 | 7.846514e-83 |
| 0.2 | 5.930901e-66 |
| 0.3 | 1.385805e-47 |
| 0.4 | 8.996892e-38 |
| 0.5 | 1.240841e-31 |
| 0.6 | 2.181611e-27 |
| 0.7 | 3.062905e-24 |
| 0.8 | 8.773951e-22 |
| 0.9 | 8.678277e-20 |
| 1 | 4.065719e-18 |
| 1.5 | 2.092074e-12 |
| 2 | 8.393711e-09 |
| 2.5 | 3.410776e-06 |
| 3 | 3.396070e-04 |
| 3.5 | 1.263654e-02 |
| 4 | 2.253710e-01 |
| 4.5 | 2.278965e+00 |
| 5 | 1.478408e+01 |
| 6 | 2.367164e+02 |
| 7 | 1.642305e+03 |
| 8 | 7.389789e+03 |
| 9 | 2.908770e+04 |
| 10 | 1.260168e+05 |

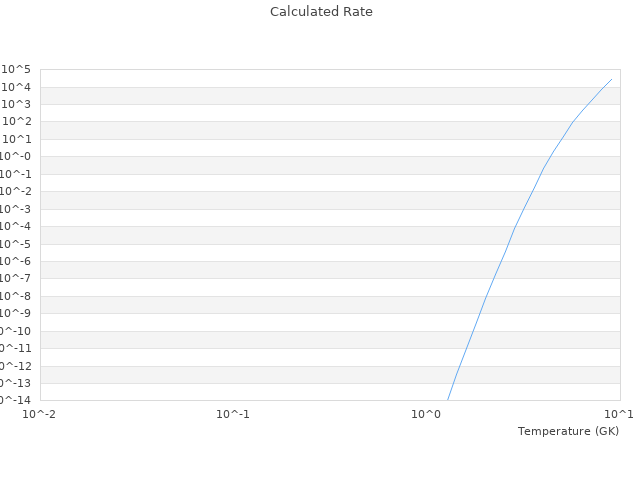

| View Graph | |
