Datapoints for p + al25 -> si26

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 3.713089e-11
0.15 1.042906e-08
0.2 4.197114e-06
0.3 4.568789e-03
0.4 1.343386e-01
0.5 9.475503e-01
0.6 3.314955e+00
0.7 7.824772e+00
0.8 1.450868e+01
0.9 2.297264e+01
1 3.263831e+01
1.5 8.228020e+01
2 1.170912e+02
2.5 1.393746e+02
3 1.587196e+02
3.5 1.832898e+02
4 2.191350e+02
4.5 2.707066e+02
5 3.413238e+02
6 5.490474e+02
7 8.555178e+02
8 1.267423e+03
9 1.787118e+03
10 2.414030e+03

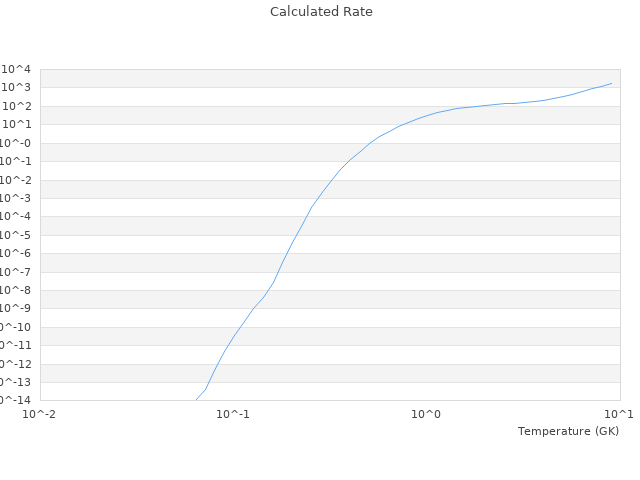

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 3.712E-11 3.7130886315982E-11 0.0293 %
0.15 1.043E-8 1.0429064057921E-8 0.009 %
0.2 4.119E-6 4.1971143507359E-6 1.8964 %
0.3 0.00457 0.0045687888071386 0.0265 %
0.4 0.1344 0.13433856508431 0.0457 %
0.5 0.948 0.94755027495155 0.0474 %
0.6 3.318 3.3149554663369 0.0918 %
0.7 7.833 7.8247717988402 0.105 %
0.8 14.52 14.508683222125 0.0779 %
0.9 22.99 22.972639247921 0.0755 %
1 32.67 32.638314779072 0.097 %
1.5 82.38 82.280200974095 0.1211 %
