Datapoints for p + o17 -> f18

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.675334e-07
0.15 1.330203e-05
0.2 2.285443e-04
0.3 5.934547e-03
0.4 7.151254e-02
0.5 7.006222e-01
0.6 3.911241e+00
0.7 1.376185e+01
0.8 3.536304e+01
0.9 7.330760e+01
1 1.306287e+02
1.5 7.048472e+02
2 1.579863e+03
2.5 2.548285e+03
3 3.537476e+03
3.5 4.548914e+03
4 5.607619e+03
4.5 6.740869e+03
5 7.971362e+03
6 1.078625e+04
7 1.413024e+04
8 1.802852e+04
9 2.247713e+04
10 2.745714e+04

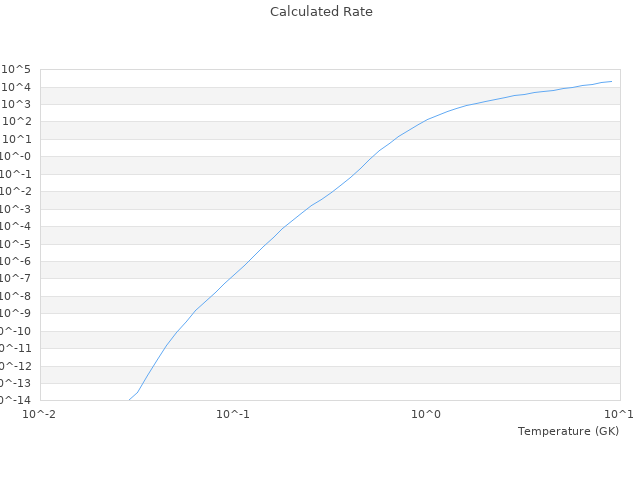

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 1.68E-7 1.6753339069392E-7 0.2777 %
0.15 1.32E-5 1.3302026144414E-5 0.7729 %
0.2 0.000227 0.0002285443280763 0.6803 %
0.3 0.00598 0.0059345473061008 0.7601 %
0.4 0.072 0.071512541316686 0.677 %
0.5 0.695 0.70062217559197 0.8089 %
0.6 3.88 3.9112405936902 0.8052 %
0.7 13.7 13.761851308374 0.4515 %
0.8 35.5 35.363036445434 0.3858 %
0.9 73.8 73.307601345803 0.6672 %
1 132 130.62865904275 1.0389 %
1.5 698 704.84722414812 0.981 %
