Datapoints for p + n13 -> o14

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 3.153645e-06
0.15 1.739022e-04
0.2 2.258354e-03
0.3 6.573364e-02
0.4 9.650998e-01
0.5 8.389527e+00
0.6 3.944697e+01
0.7 1.202363e+02
0.8 2.768101e+02
0.9 5.310709e+02
1 9.043122e+02
1.5 6.289674e+03
2 3.247336e+04
2.5 1.383648e+05
3 4.723743e+05
3.5 1.324083e+06
4 3.138841e+06
4.5 6.438795e+06
5 1.162191e+07
6 2.701644e+07
7 4.219751e+07
8 4.622117e+07
9 3.656689e+07
10 2.135208e+07

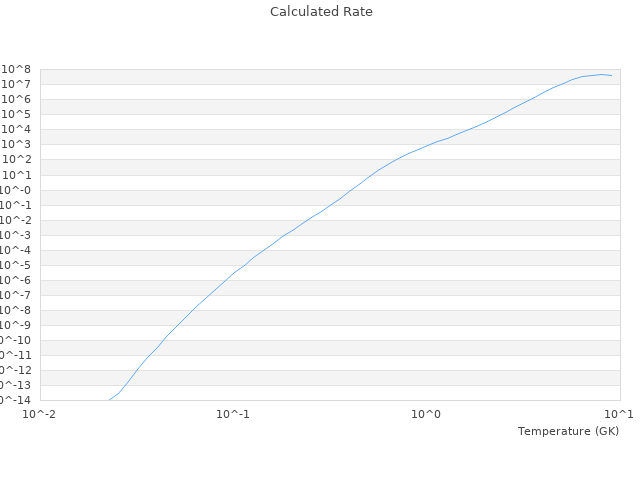

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 3.1378E-6 3.153644738E-6 0.505 %
0.15 0.00016881 0.000173902241752 3.0166 %
0.2 0.0021564 0.00225835388023 4.728 %
0.3 0.067317 0.065733635444 2.3521 %
0.4 0.9839 0.965099780661 1.9108 %
0.5 8.063 8.38952745854 4.0497 %
0.6 38.339 39.4469695762 2.8899 %
0.7 121.73 120.236346374 1.227 %
0.8 290.52 276.810074145 4.7191 %
0.9 565.59 531.070937733 6.1032 %
1 949.33 904.312210716 4.7421 %
