Datapoints for p + ne22 -> na23
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.302010e-04 |
| 0.15 | 6.661399e-03 |
| 0.2 | 3.158249e-02 |
| 0.3 | 1.420503e-01 |
| 0.4 | 1.016438e+00 |
| 0.5 | 8.512066e+00 |
| 0.6 | 3.976269e+01 |
| 0.7 | 1.226083e+02 |
| 0.8 | 2.894505e+02 |
| 0.9 | 5.715370e+02 |
| 1 | 9.960561e+02 |
| 1.5 | 5.918250e+03 |
| 2 | 1.665778e+04 |
| 2.5 | 3.454654e+04 |
| 3 | 6.101774e+04 |
| 3.5 | 9.760206e+04 |
| 4 | 1.457835e+05 |
| 4.5 | 2.068293e+05 |
| 5 | 2.816149e+05 |
| 6 | 4.729778e+05 |
| 7 | 7.134418e+05 |
| 8 | 9.834271e+05 |
| 9 | 1.251878e+06 |
| 10 | 1.482058e+06 |

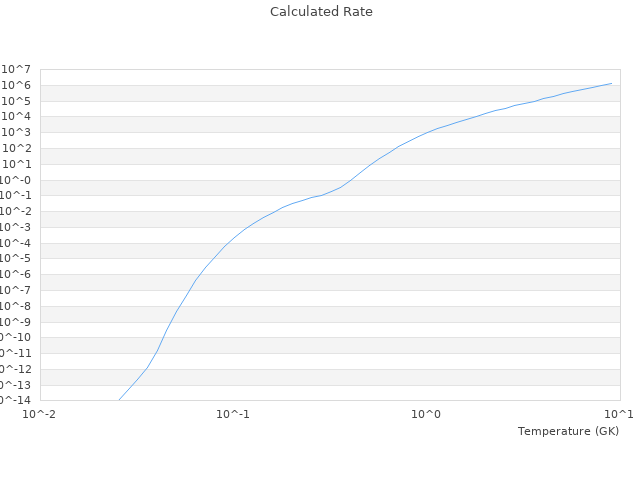

| View Graph | |
