Datapoints for p + b12 -> he4 + be9
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.262727e+00 |
| 0.15 | 8.829063e+01 |
| 0.2 | 5.867804e+02 |
| 0.3 | 6.151024e+03 |
| 0.4 | 2.658467e+04 |
| 0.5 | 7.449261e+04 |
| 0.6 | 1.623162e+05 |
| 0.7 | 3.008175e+05 |
| 0.8 | 4.985645e+05 |
| 0.9 | 7.619384e+05 |
| 1 | 1.095367e+06 |
| 1.5 | 3.868953e+06 |
| 2 | 8.409321e+06 |
| 2.5 | 1.444194e+07 |
| 3 | 2.165296e+07 |
| 3.5 | 2.976320e+07 |
| 4 | 3.854287e+07 |
| 4.5 | 4.780850e+07 |
| 5 | 5.741533e+07 |
| 6 | 7.722239e+07 |
| 7 | 9.731848e+07 |
| 8 | 1.173070e+08 |
| 9 | 1.369456e+08 |
| 10 | 1.560890e+08 |

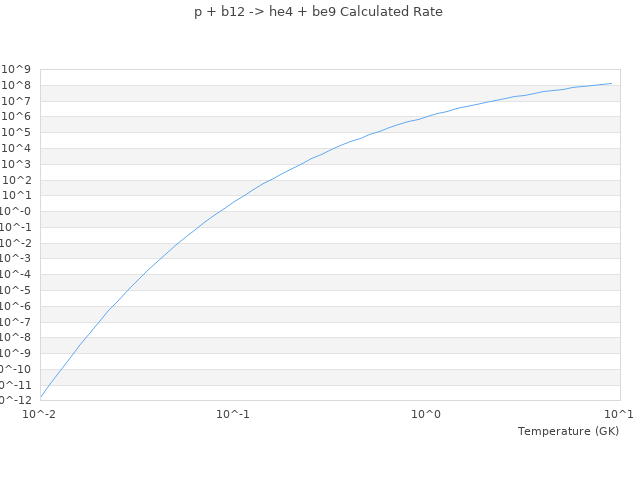

| View Graph | |
