Datapoints for he4 + b13 -> n + n16
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.164903e-19 |
| 0.15 | 1.125794e-15 |
| 0.2 | 5.152988e-14 |
| 0.3 | 1.074168e-11 |
| 0.4 | 2.763773e-08 |
| 0.5 | 3.944437e-06 |
| 0.6 | 1.137258e-04 |
| 0.7 | 1.277698e-03 |
| 0.8 | 7.846672e-03 |
| 0.9 | 3.197014e-02 |
| 1 | 9.738712e-02 |
| 1.5 | 2.474972e+00 |
| 2 | 1.170242e+01 |
| 2.5 | 3.113579e+01 |
| 3 | 6.638210e+01 |
| 3.5 | 1.292601e+02 |
| 4 | 2.414063e+02 |
| 4.5 | 4.389694e+02 |
| 5 | 7.773176e+02 |
| 6 | 2.188329e+03 |
| 7 | 5.006212e+03 |
| 8 | 8.623715e+03 |
| 9 | 1.046661e+04 |
| 10 | 8.470831e+03 |

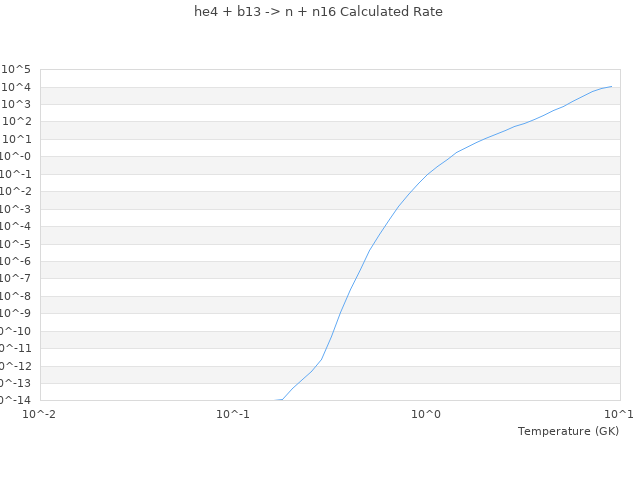

| View Graph | |
