Datapoints for he4 + c13 -> p + n16
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 6.259509e-250 |
| 0.2 | 1.554952e-186 |
| 0.3 | 7.000109e-123 |
| 0.4 | 6.858721e-91 |
| 0.5 | 1.312117e-71 |
| 0.6 | 1.059958e-58 |
| 0.7 | 1.904494e-49 |
| 0.8 | 1.758964e-42 |
| 0.9 | 4.796862e-37 |
| 1 | 1.104862e-32 |
| 1.5 | 1.704999e-19 |
| 2 | 8.163718e-13 |
| 2.5 | 9.221815e-09 |
| 3 | 4.938893e-06 |
| 3.5 | 4.574698e-04 |
| 4 | 1.404913e-02 |
| 4.5 | 2.057517e-01 |
| 5 | 1.789060e+00 |
| 6 | 4.734310e+01 |
| 7 | 5.057632e+02 |
| 8 | 3.048651e+03 |
| 9 | 1.250672e+04 |
| 10 | 3.910619e+04 |

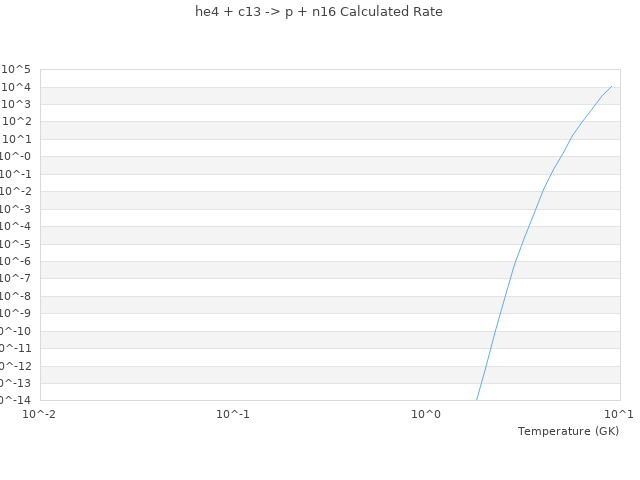

| View Graph | |
