Datapoints for he4 + n13 -> p + o16
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.694871e-16 |
| 0.15 | 4.489379e-12 |
| 0.2 | 1.636940e-09 |
| 0.3 | 2.515037e-06 |
| 0.4 | 2.440060e-04 |
| 0.5 | 6.085367e-03 |
| 0.6 | 6.875117e-02 |
| 0.7 | 4.657473e-01 |
| 0.8 | 2.214487e+00 |
| 0.9 | 8.138183e+00 |
| 1 | 2.461785e+01 |
| 1.5 | 1.067100e+03 |
| 2 | 9.782223e+03 |
| 2.5 | 4.222527e+04 |
| 3 | 1.183767e+05 |
| 3.5 | 2.525262e+05 |
| 4 | 4.478507e+05 |
| 4.5 | 6.969008e+05 |
| 5 | 9.854352e+05 |
| 6 | 1.615221e+06 |
| 7 | 2.225459e+06 |
| 8 | 2.755611e+06 |
| 9 | 3.192342e+06 |
| 10 | 3.550541e+06 |

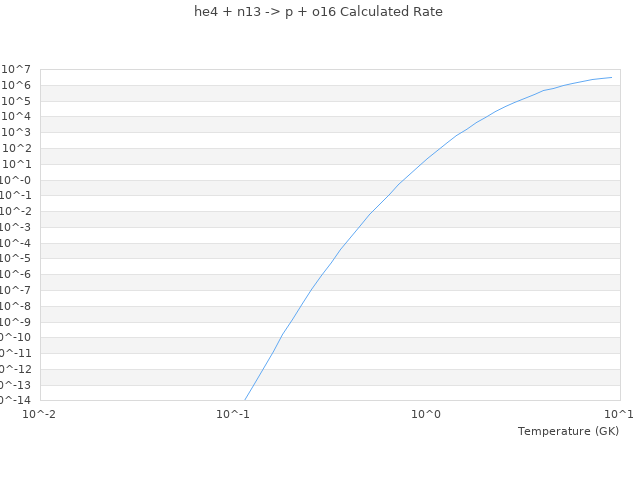

| View Graph | |
