Datapoints for he4 + n15 -> n + f18

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 INFe-316
0.15 3.726120e-208
0.2 3.107360e-154
0.3 2.596931e-100
0.4 2.357129e-73
0.5 3.486876e-57
0.6 2.077201e-46
0.7 1.021120e-38
0.8 5.931872e-33
0.9 1.786997e-28
1 6.781340e-25
1.5 3.375953e-14
2 6.714841e-09
2.5 9.309379e-06
3 1.085144e-03
3.5 3.093975e-02
4 3.681416e-01
4.5 2.459859e+00
5 1.102971e+01
6 1.015313e+02
7 4.897473e+02
8 1.615629e+03
9 4.223949e+03
10 9.556382e+03

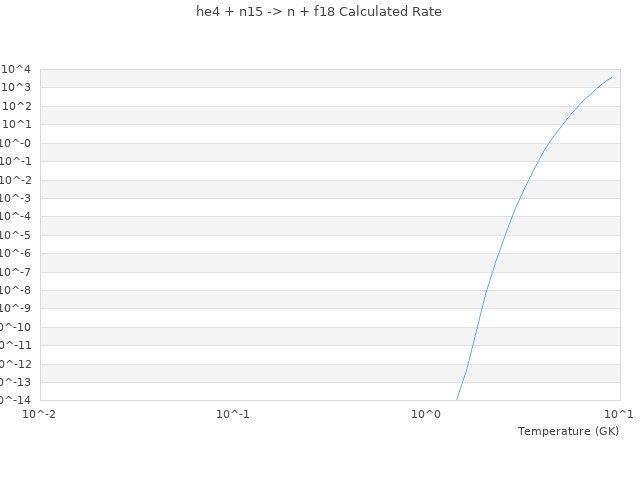

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
1 6.61E-25 6.78134012397E-25 2.5921 %
2 6.53E-9 6.71484078277E-9 2.8306 %
3 0.00111 0.00108514358446 2.2393 %
4 0.386 0.368141640214 4.6265 %
