Datapoints for he4 + n16 -> p + o19
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.425082e-130 |
| 0.15 | 1.797240e-86 |
| 0.2 | 3.480595e-64 |
| 0.3 | 1.303898e-41 |
| 0.4 | 3.844192e-30 |
| 0.5 | 3.659680e-23 |
| 0.6 | 1.882611e-18 |
| 0.7 | 4.775604e-15 |
| 0.8 | 1.818554e-12 |
| 0.9 | 1.937261e-10 |
| 1 | 8.406159e-09 |
| 1.5 | 8.923216e-04 |
| 2 | 3.632068e-01 |
| 2.5 | 1.501505e+01 |
| 3 | 1.925372e+02 |
| 3.5 | 1.247069e+03 |
| 4 | 5.228156e+03 |
| 4.5 | 1.631746e+04 |
| 5 | 4.128444e+04 |
| 6 | 1.722690e+05 |
| 7 | 4.940545e+05 |
| 8 | 1.114125e+06 |
| 9 | 2.132323e+06 |
| 10 | 3.629338e+06 |

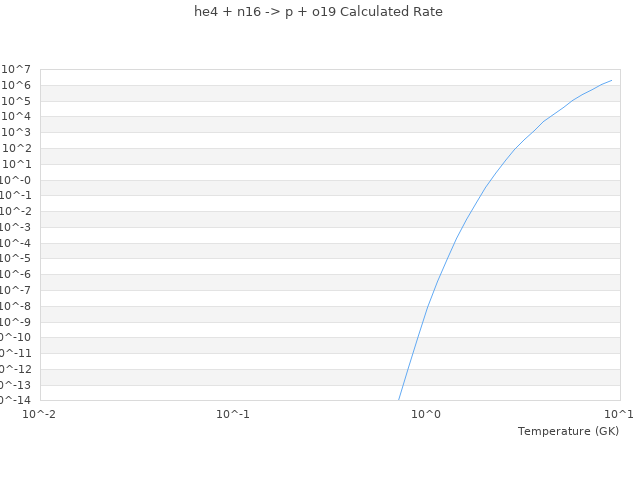

| View Graph | |
