Datapoints for he4 + o14 -> p + f17

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.126140e-21
0.15 7.981315e-17
0.2 6.963301e-14
0.3 4.050481e-10
0.4 1.621976e-07
0.5 2.350057e-05
0.6 8.753025e-04
0.7 1.182817e-02
0.8 8.235135e-02
0.9 3.674757e-01
1 1.202724e+00
1.5 4.158088e+01
2 3.430582e+02
2.5 1.802359e+03
3 6.247224e+03
3.5 1.552898e+04
4 3.054757e+04
4.5 5.106639e+04
5 7.606226e+04
6 1.340170e+05
7 1.943505e+05
8 2.503529e+05
9 2.987447e+05
10 3.385382e+05

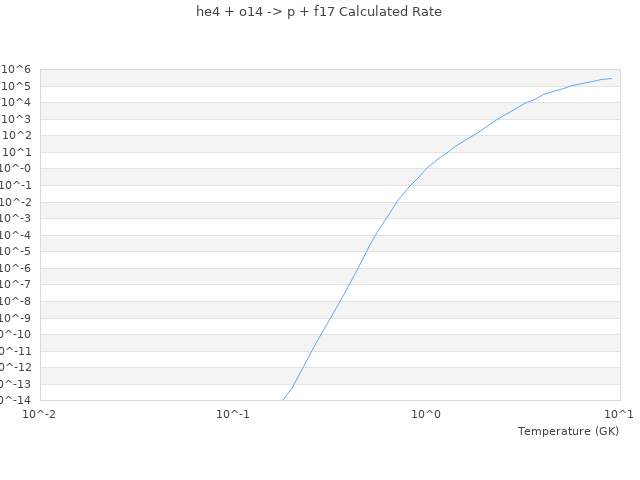

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 2.07E-21 2.12614040395E-21 2.7121 %
0.15 8.44E-17 7.98131491965E-17 5.4347 %
0.2 7.15E-14 6.96330078641E-14 2.6112 %
0.25 9.03E-12 9.26838363152E-12 2.6399 %
0.3 3.85E-10 4.05048085594E-10 5.2073 %
0.35 9.16E-9 9.25617727437E-9 1.05 %
0.4 1.7E-7 1.62197611243E-7 4.5896 %
0.45 2.43E-6 2.30903779252E-6 4.9779 %
0.5 2.42E-5 2.350057057E-5 2.8902 %
0.55 0.000169 0.000167364053018 0.968 %
0.6 0.000868 0.000875302463784 0.8413 %
0.65 0.00349 0.00356030005184 2.0143 %
0.7 0.0115 0.0118281736341 2.8537 %
0.75 0.0323 0.0333640834355 3.2944 %
0.8 0.0793 0.0823513503817 3.8479 %
0.85 0.175 0.18209989861 4.0571 %
0.9 0.352 0.367475742395 4.3965 %
0.95 0.658 0.686762100968 4.3711 %
1 1.15 1.20272367039 4.5847 %
