Datapoints for he4 + o17 -> p + f20
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.918318e-290 |
| 0.15 | 6.634279e-193 |
| 0.2 | 4.025135e-144 |
| 0.3 | 5.020269e-95 |
| 0.4 | 2.808995e-70 |
| 0.5 | 2.531252e-55 |
| 0.6 | 2.739910e-45 |
| 0.7 | 4.446248e-38 |
| 0.8 | 1.218643e-32 |
| 0.9 | 2.175676e-28 |
| 1 | 5.700933e-25 |
| 1.5 | 1.368346e-14 |
| 2 | 2.710081e-09 |
| 2.5 | 4.645378e-06 |
| 3 | 7.190493e-04 |
| 3.5 | 2.773495e-02 |
| 4 | 4.448669e-01 |
| 4.5 | 3.953209e+00 |
| 5 | 2.314812e+01 |
| 6 | 3.415533e+02 |
| 7 | 2.424295e+03 |
| 8 | 1.081842e+04 |
| 9 | 3.528256e+04 |
| 10 | 9.213614e+04 |

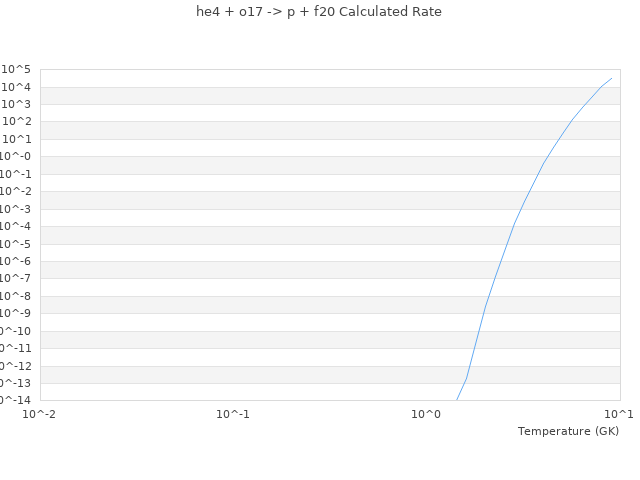

| View Graph | |
