Datapoints for he4 + f19 -> p + ne22

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 4.365132e-22
0.15 4.492296e-17
0.2 6.301845e-14
0.3 5.097415e-10
0.4 1.334199e-07
0.5 6.500854e-06
0.6 1.282442e-04
0.7 1.494569e-03
0.8 1.176933e-02
0.9 6.639078e-02
1 2.836197e-01
1.5 3.032828e+01
2 3.831939e+02
2.5 1.915596e+03
3 5.895153e+03
3.5 1.363957e+04
4 2.628468e+04
4.5 4.470589e+04
5 6.952606e+04
6 1.398426e+05
7 2.387824e+05
8 3.663932e+05
9 5.219668e+05
10 7.044536e+05

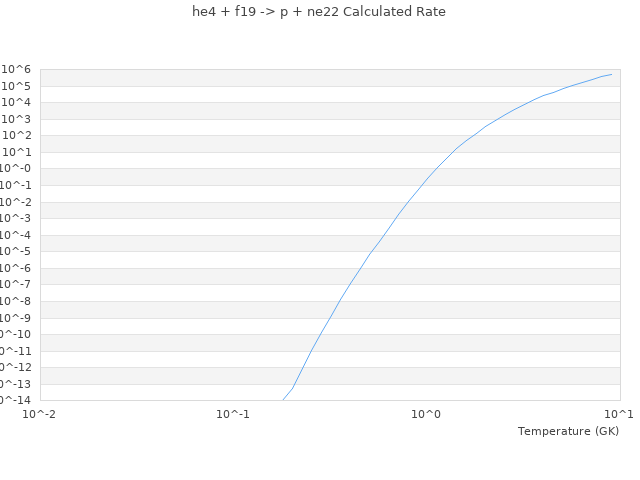

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 4.35E-22 4.36513227785E-22 0.3479 %
0.4 1.34E-7 1.33419909778E-7 0.4329 %
1 0.28 0.283619658062 1.2927 %
2 383 383.193851395 0.0506 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
