Datapoints for p + f20 -> he4 + o17
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.599968e-04 |
| 0.15 | 2.767524e-02 |
| 0.2 | 5.174187e-01 |
| 0.3 | 1.988624e+01 |
| 0.4 | 1.953254e+02 |
| 0.5 | 9.821374e+02 |
| 0.6 | 3.344459e+03 |
| 0.7 | 8.856534e+03 |
| 0.8 | 1.970866e+04 |
| 0.9 | 3.864605e+04 |
| 1 | 6.887175e+04 |
| 1.5 | 5.200484e+05 |
| 2 | 1.826866e+06 |
| 2.5 | 4.416429e+06 |
| 3 | 8.597247e+06 |
| 3.5 | 1.456010e+07 |
| 4 | 2.240109e+07 |
| 4.5 | 3.214658e+07 |
| 5 | 4.377413e+07 |
| 6 | 7.243285e+07 |
| 7 | 1.077285e+08 |
| 8 | 1.488881e+08 |
| 9 | 1.951324e+08 |
| 10 | 2.457297e+08 |

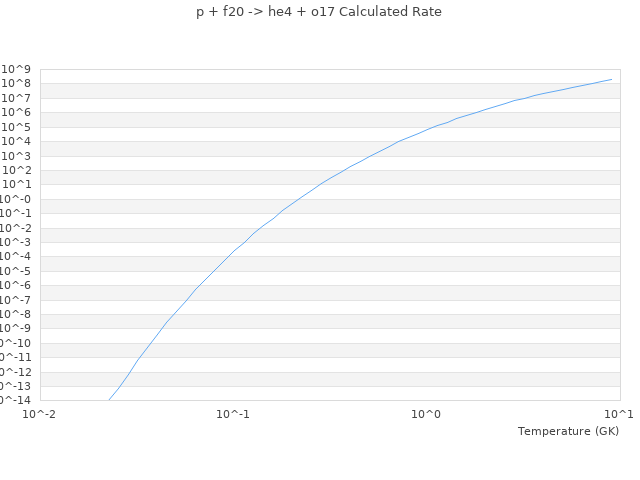

| View Graph | |
