Datapoints for he4 + ne18 -> p + na21
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.339691e-24 |
| 0.15 | 1.247784e-20 |
| 0.2 | 9.023733e-18 |
| 0.3 | 1.102897e-13 |
| 0.4 | 9.271533e-11 |
| 0.5 | 1.335157e-08 |
| 0.6 | 4.482239e-07 |
| 0.7 | 7.313802e-06 |
| 0.8 | 1.307298e-04 |
| 0.9 | 1.618262e-03 |
| 1 | 1.252919e-02 |
| 1.5 | 6.552876e+00 |
| 2 | 1.680864e+02 |
| 2.5 | 1.294720e+03 |
| 3 | 5.500436e+03 |
| 3.5 | 1.656362e+04 |
| 4 | 3.975825e+04 |
| 4.5 | 8.090838e+04 |
| 5 | 1.447768e+05 |
| 6 | 3.443825e+05 |
| 7 | 6.044368e+05 |
| 8 | 8.395271e+05 |
| 9 | 9.653445e+05 |
| 10 | 9.499181e+05 |

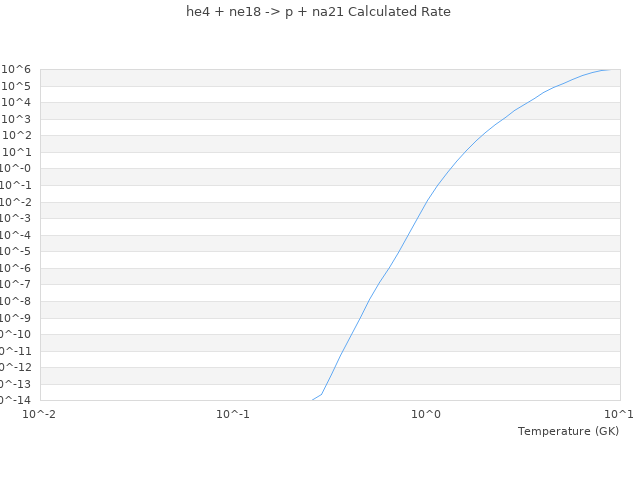

| View Graph | |
