Datapoints for p + ne22 -> he4 + f19

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.075421e-105
0.15 1.523045e-72
0.2 2.506361e-55
0.3 2.378251e-37
0.4 6.742084e-28
0.5 5.461896e-22
0.6 7.019034e-18
0.7 8.368739e-15
0.8 2.119944e-12
0.9 1.778790e-10
1 6.587318e-09
1.5 4.588664e-04
2 1.479756e-01
2.5 5.166960e+00
3 5.810314e+01
3.5 3.392235e+02
4 1.308801e+03
4.5 3.819659e+03
5 9.149525e+03
6 3.517847e+04
7 9.541801e+04
8 2.071659e+05
9 3.865966e+05
10 6.475348e+05

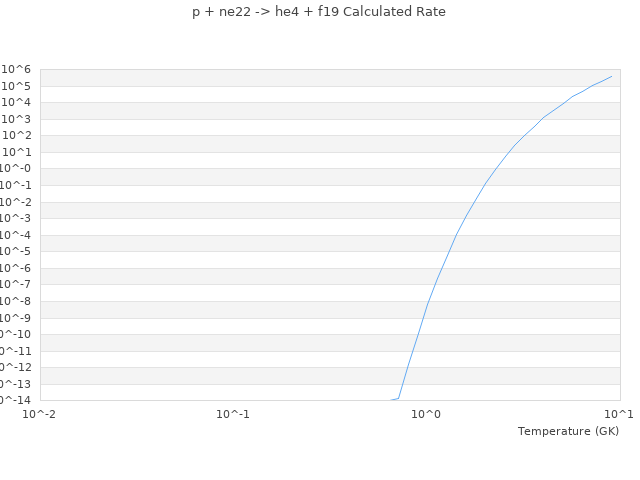

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.4 6.68E-28 6.74208369719E-28 0.9294 %
0.8 2.08E-12 2.11994437543E-12 1.9204 %
1 6.43E-9 6.5873182439E-9 2.4466 %
2 0.146 0.147975565852 1.3531 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
