Datapoints for p + na21 -> he4 + ne18
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.281793e-157 |
| 0.15 | 5.400451e-109 |
| 0.2 | 4.544739e-84 |
| 0.3 | 6.463697e-58 |
| 0.4 | 5.861502e-44 |
| 0.5 | 3.516714e-35 |
| 0.6 | 3.056810e-29 |
| 0.7 | 7.082536e-25 |
| 0.8 | 2.928315e-21 |
| 0.9 | 2.500964e-18 |
| 1 | 5.728404e-16 |
| 1.5 | 7.757087e-09 |
| 2 | 3.201681e-05 |
| 2.5 | 5.199599e-03 |
| 3 | 1.685870e-01 |
| 3.5 | 2.167878e+00 |
| 4 | 1.545776e+01 |
| 4.5 | 7.336296e+01 |
| 5 | 2.584601e+02 |
| 6 | 1.698447e+03 |
| 7 | 6.160100e+03 |
| 8 | 1.474656e+04 |
| 9 | 2.589524e+04 |
| 10 | 3.575434e+04 |

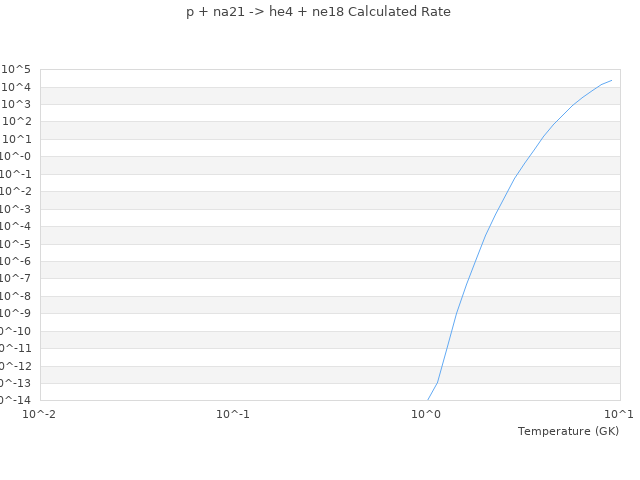

| View Graph | |
