Datapoints for n + na22 -> he4 + f19

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 3.537585e+06
0.15 3.697177e+06
0.2 3.864825e+06
0.3 4.223121e+06
0.4 4.612885e+06
0.5 5.036288e+06
0.6 5.496081e+06
0.7 5.995335e+06
0.8 6.537356e+06
0.9 7.125645e+06
1 7.763869e+06
1.5 1.184185e+07
2 1.778240e+07
2.5 2.611596e+07
3 3.731736e+07
3.5 5.172756e+07
4 6.948248e+07
4.5 9.046001e+07
5 1.142538e+08
6 1.673053e+08
7 2.206500e+08
8 2.648827e+08
9 2.920389e+08
10 2.978726e+08

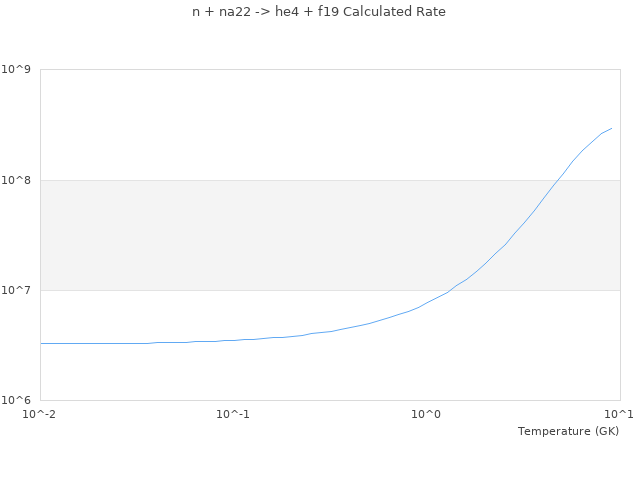

View Graph

Comparison with Literature Sources

T9 Literature Calculated (with SEF*) Difference
0.1 3600000 3537584.80973* 1.7338 %
0.4 4660000 4612884.78836* 1.0111 %
1 7620000 7734709.02351* 1.5054 %
2 15800000 16052283.1433* 1.5967 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
