Datapoints for he4 + mg19 -> p + al22
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.135906e-30 |
| 0.15 | 1.493821e-23 |
| 0.2 | 1.132432e-19 |
| 0.3 | 7.018275e-15 |
| 0.4 | 6.986250e-12 |
| 0.5 | 9.324483e-10 |
| 0.6 | 3.865328e-08 |
| 0.7 | 7.518347e-07 |
| 0.8 | 8.646346e-06 |
| 0.9 | 6.773843e-05 |
| 1 | 3.966030e-04 |
| 1.5 | 1.903977e-01 |
| 2 | 8.539663e+00 |
| 2.5 | 1.191593e+02 |
| 3 | 8.433361e+02 |
| 3.5 | 3.858601e+03 |
| 4 | 1.307972e+04 |
| 4.5 | 3.570141e+04 |
| 5 | 8.283639e+04 |
| 6 | 3.141539e+05 |
| 7 | 8.601691e+05 |
| 8 | 1.885396e+06 |
| 9 | 3.520083e+06 |
| 10 | 5.824589e+06 |

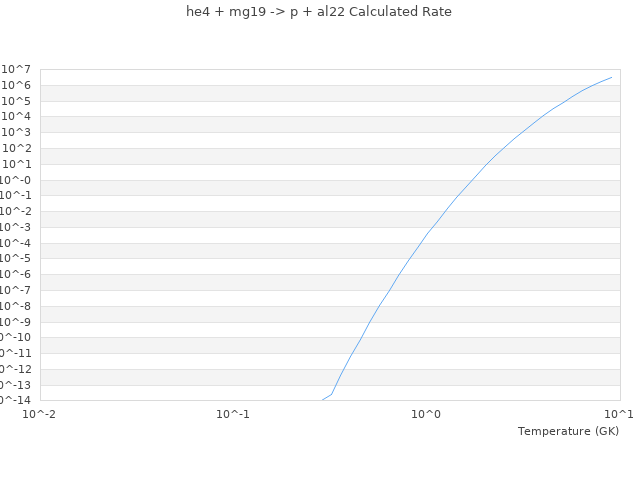

| View Graph | |
