Datapoints for p + mg26 -> n + al26

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.134884e-233
0.15 5.409681e-153
0.2 8.638716e-113
0.3 1.388305e-72
0.4 1.771242e-52
0.5 2.060641e-40
0.6 2.289420e-32
0.7 1.283336e-26
0.8 2.638144e-22
0.9 5.986715e-19
1 2.905145e-16
1.5 3.425997e-08
2 3.890681e-04
2.5 1.100184e-01
3 4.932673e+00
3.5 7.740920e+01
4 6.304926e+02
4.5 3.310505e+03
5 1.273953e+04
6 9.961388e+04
7 4.371079e+05
8 1.291477e+06
9 2.844674e+06
10 4.977125e+06

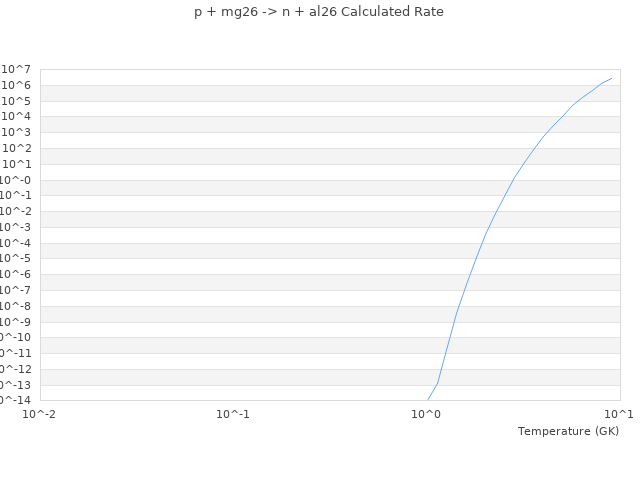

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.8 2.6E-22 2.63814368715E-22 1.4671 %
1 2.89E-16 2.90514529517E-16 0.5241 %
2 0.000419 0.000389068069547 7.1437 %
3 5.78 4.93267340695 14.6596 %
