Datapoints for p + mg26 -> n + al-6

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 2.153560e-233
0.15 5.444835e-153
0.2 8.668825e-113
0.3 1.383049e-72
0.4 1.750094e-52
0.5 2.018411e-40
0.6 2.222630e-32
0.7 1.234833e-26
0.8 2.516205e-22
0.9 5.661353e-19
1 2.724777e-16
1.5 3.108123e-08
2 3.475297e-04
2.5 9.870465e-02
3 4.520804e+00
3.5 7.323235e+01
4 6.174867e+02
4.5 3.344972e+03
5 1.317893e+04
6 1.047963e+05
7 4.487673e+05
8 1.248016e+06
9 2.508781e+06
10 3.895828e+06

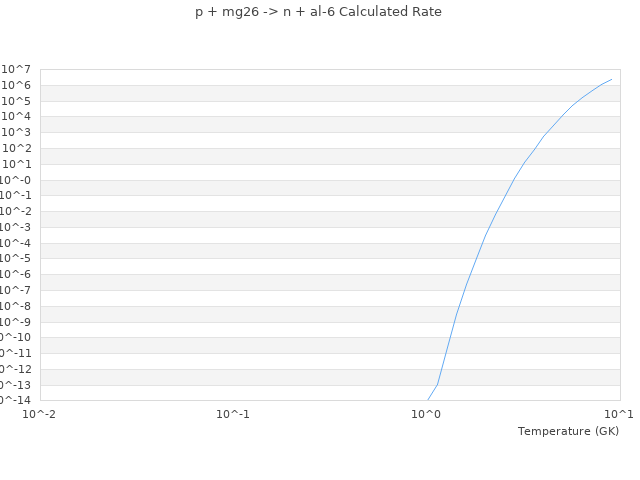

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.8 2.53E-22 2.5162053851E-22 0.5452 %
1 2.73E-16 2.72477656941E-16 0.1913 %
2 0.00034 0.000347529724754 2.2146 %
3 4.53 4.52080371782 0.203 %
