Datapoints for ne18 -> n + ne17
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | INFe-309 |
| 0.4 | 1.941083e-228 |
| 0.5 | 7.150324e-180 |
| 0.6 | 1.796405e-147 |
| 0.7 | 2.591497e-124 |
| 0.8 | 6.240010e-107 |
| 0.9 | 2.107963e-93 |
| 1 | 1.427496e-82 |
| 1.5 | 5.132401e-50 |
| 2 | 1.123252e-33 |
| 2.5 | 7.818513e-24 |
| 3 | 3.029896e-17 |
| 3.5 | 1.610283e-12 |
| 4 | 5.835622e-09 |
| 4.5 | 3.518688e-06 |
| 5 | 6.032262e-04 |
| 6 | 1.424844e+00 |
| 7 | 3.852641e+02 |
| 8 | 2.673940e+04 |
| 9 | 7.468254e+05 |
| 10 | 1.099990e+07 |

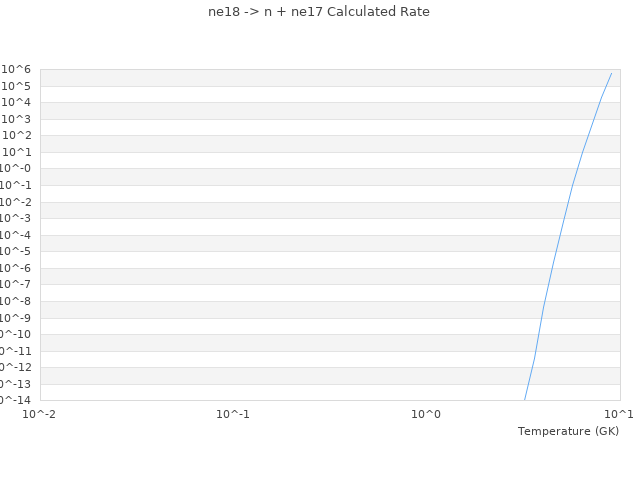

| View Graph | |
