Datapoints for ti44 -> n + ti43
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 2.107908e-259 |
| 0.4 | 8.717752e-191 |
| 0.5 | 1.377807e-149 |
| 0.6 | 4.210708e-122 |
| 0.7 | 1.864270e-102 |
| 0.8 | 1.036653e-87 |
| 0.9 | 3.106804e-76 |
| 1 | 4.789858e-67 |
| 1.5 | 1.990736e-39 |
| 2 | 1.451848e-25 |
| 2.5 | 3.255711e-17 |
| 3 | 1.265264e-11 |
| 3.5 | 1.290669e-07 |
| 4 | 1.346875e-04 |
| 4.5 | 3.063933e-02 |
| 5 | 2.393420e+00 |
| 6 | 1.709714e+03 |
| 7 | 1.925340e+05 |
| 8 | 6.779170e+06 |
| 9 | 1.092802e+08 |
| 10 | 1.014399e+09 |

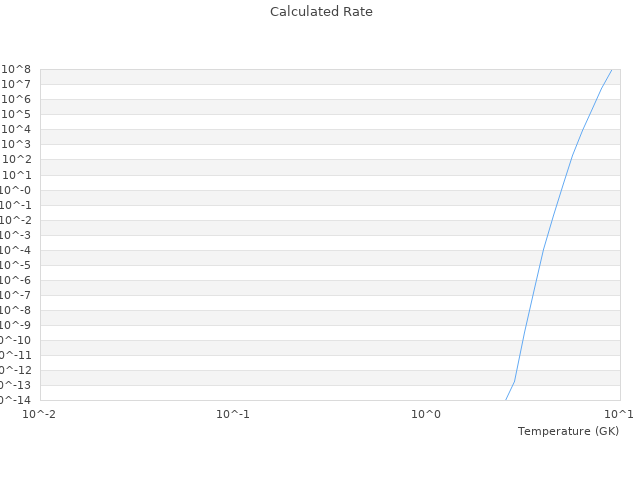

| View Graph | |
