Datapoints for p + al28 -> he4 + mg25

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 1.558698e-12
0.15 8.360536e-10
0.2 4.761243e-08
0.3 9.110980e-06
0.4 2.997950e-04
0.5 4.035608e-03
0.6 3.147528e-02
0.7 1.697307e-01
0.8 7.016230e-01
0.9 2.374479e+00
1 6.878263e+00
1.5 3.201315e+02
2 3.752441e+03
2.5 2.142000e+04
3 7.888799e+04
3.5 2.168694e+05
4 4.849263e+05
4.5 9.323720e+05
5 1.602298e+06
6 3.757115e+06
7 7.258632e+06
8 1.240653e+07
9 1.911689e+07
10 2.642264e+07

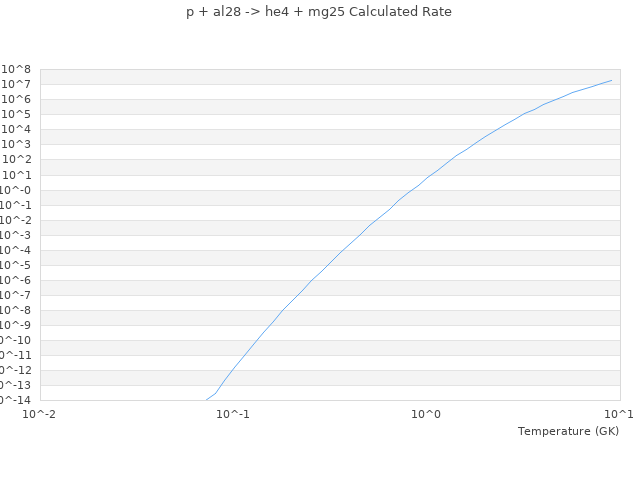

View Graph

Comparison with Literature Sources

T9 Literature Calculated (with SEF*) Difference
0.4 0.000305 0.000297770186534* 2.3704 %
0.8 0.669 0.680196831603* 1.6737 %
1 6.64 6.55941036514* 1.2137 %
2 3183.41 3398.95047487* 6.7707 %
