Datapoints for n + ge75 -> ge76

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 3.807389e+07
0.15 2.927794e+07
0.2 2.403516e+07
0.3 1.800080e+07
0.4 1.461143e+07
0.5 1.244273e+07
0.6 1.094133e+07
0.7 9.845163e+06
0.8 9.013553e+06
0.9 8.364079e+06
1 7.845199e+06
1.5 6.325346e+06
2 5.621495e+06
2.5 5.228373e+06
3 4.965863e+06
3.5 4.752090e+06
4 4.544599e+06
4.5 4.320597e+06
5 4.069000e+06
6 3.475888e+06
7 2.797381e+06
8 2.106662e+06
9 1.478983e+06
10 9.659766e+05

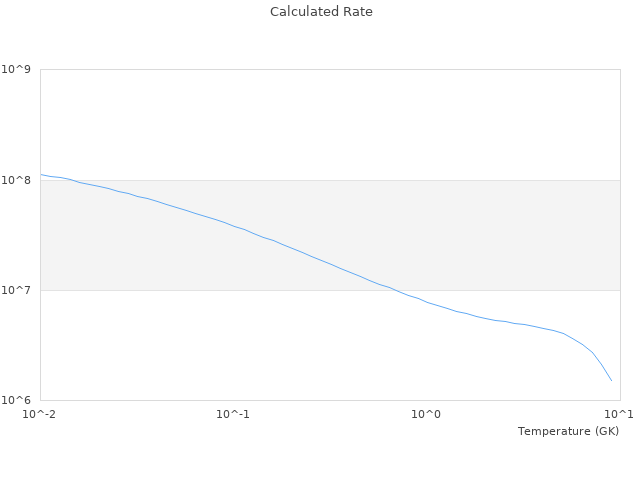

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 18500000 38073892.7741 105.8048 %
0.2 15600000 24035156.0304 54.0715 %
0.3 13700000 18000795.5961 31.3927 %
0.5 11200000 12442731.8053 11.0958 %
0.6 10400000 10941331.768 5.2051 %
0.7 9670000 9845163.26782 1.8114 %
0.8 9100000 9013553.19864 0.95 %
0.9 8620000 8364079.18836 2.9689 %
1 8200000 7845199.15477 4.3268 %
1.5 6780000 6325345.69569 6.7058 %
2 5950000 5621494.77402 5.5211 %
3 5000000 4965863.45746 0.6827 %
5 4000000 4069000.14485 1.725 %
