Datapoints for i117 -> n + i116
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 1.261501e-260 |
| 0.3 | 7.467583e-168 |
| 0.4 | 2.064172e-121 |
| 0.5 | 1.631558e-93 |
| 0.6 | 6.806107e-75 |
| 0.7 | 1.407447e-61 |
| 0.8 | 1.400833e-51 |
| 0.9 | 8.534686e-44 |
| 1 | 1.464707e-37 |
| 1.5 | 8.309242e-19 |
| 2 | 2.169099e-09 |
| 2.5 | 1.002672e-03 |
| 3 | 6.026777e+00 |
| 3.5 | 2.982155e+03 |
| 4 | 3.063153e+05 |
| 4.5 | 1.093202e+07 |
| 5 | 1.847955e+08 |
| 6 | 1.158935e+10 |
| 7 | 1.925446e+11 |
| 8 | 1.356954e+12 |
| 9 | 5.279291e+12 |
| 10 | 1.329753e+13 |

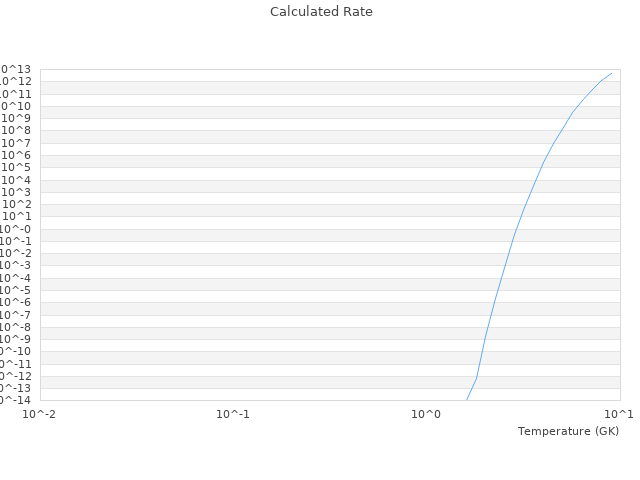

| View Graph | |
