Datapoints for p + sc45 -> ti46
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.808860e-15 |
| 0.15 | 3.874445e-11 |
| 0.2 | 8.101651e-09 |
| 0.3 | 6.260962e-06 |
| 0.4 | 3.955581e-04 |
| 0.5 | 7.274514e-03 |
| 0.6 | 6.507457e-02 |
| 0.7 | 3.652163e-01 |
| 0.8 | 1.483772e+00 |
| 0.9 | 4.764059e+00 |
| 1 | 1.280240e+01 |
| 1.5 | 3.565699e+02 |
| 2 | 2.395948e+03 |
| 2.5 | 8.100722e+03 |
| 3 | 1.853678e+04 |
| 3.5 | 3.323601e+04 |
| 4 | 5.068295e+04 |
| 4.5 | 6.910747e+04 |
| 5 | 8.703957e+04 |
| 6 | 1.181294e+05 |
| 7 | 1.417234e+05 |
| 8 | 1.598754e+05 |
| 9 | 1.759645e+05 |
| 10 | 1.934454e+05 |

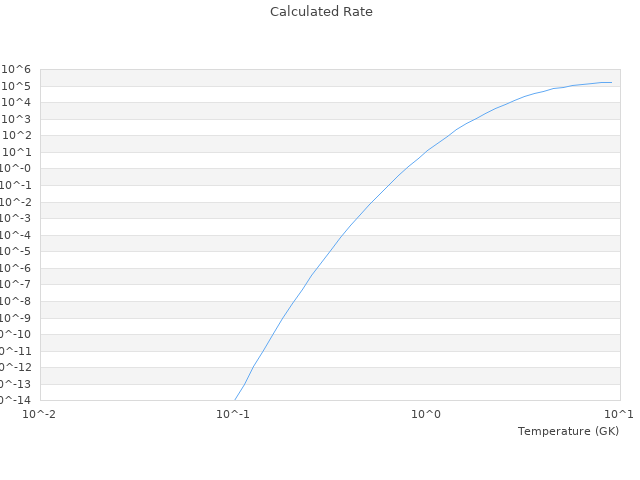

| View Graph | |
