Datapoints for y77 -> p + sr76
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.015156e-14 |
| 0.15 | 6.302434e-11 |
| 0.2 | 1.646544e-08 |
| 0.3 | 6.159126e-05 |
| 0.4 | 2.488670e-02 |
| 0.5 | 2.647082e+00 |
| 0.6 | 1.144925e+02 |
| 0.7 | 2.581957e+03 |
| 0.8 | 3.551416e+04 |
| 0.9 | 3.312503e+05 |
| 1 | 2.258950e+06 |
| 1.5 | 1.438550e+09 |
| 2 | 4.196910e+10 |
| 2.5 | 2.405504e+11 |
| 3 | 5.433514e+11 |
| 3.5 | 7.136394e+11 |
| 4 | 6.924462e+11 |
| 4.5 | 5.810292e+11 |
| 5 | 4.700200e+11 |
| 6 | 3.685304e+11 |
| 7 | 5.038550e+11 |
| 8 | 1.525921e+12 |
| 9 | 1.185740e+13 |
| 10 | 2.595823e+14 |

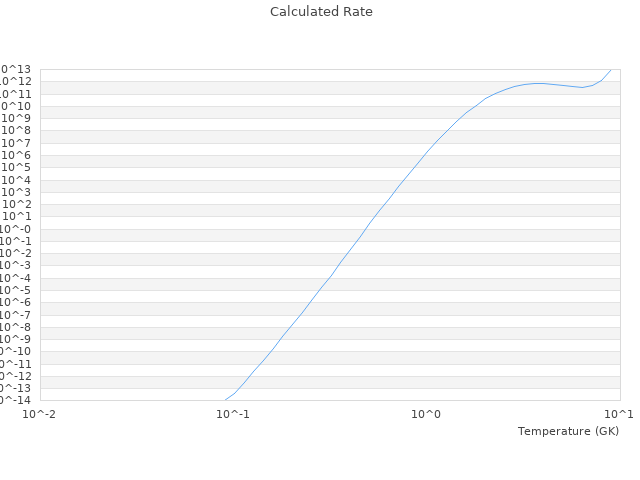

| View Graph | |
