Datapoints for zr75 -> p + y74
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.120579e-13 |
| 0.15 | 1.150049e-09 |
| 0.2 | 2.541786e-07 |
| 0.3 | 7.399075e-04 |
| 0.4 | 2.480736e-01 |
| 0.5 | 2.275269e+01 |
| 0.6 | 8.708478e+02 |
| 0.7 | 1.770708e+04 |
| 0.8 | 2.227409e+05 |
| 0.9 | 1.921303e+06 |
| 1 | 1.222603e+07 |
| 1.5 | 6.025599e+09 |
| 2 | 1.485088e+11 |
| 2.5 | 7.527106e+11 |
| 3 | 1.542646e+12 |
| 3.5 | 1.865285e+12 |
| 4 | 1.679084e+12 |
| 4.5 | 1.311261e+12 |
| 5 | 9.873047e+11 |
| 6 | 6.653106e+11 |
| 7 | 7.666087e+11 |
| 8 | 1.905876e+12 |
| 9 | 1.179354e+13 |
| 10 | 1.989304e+14 |

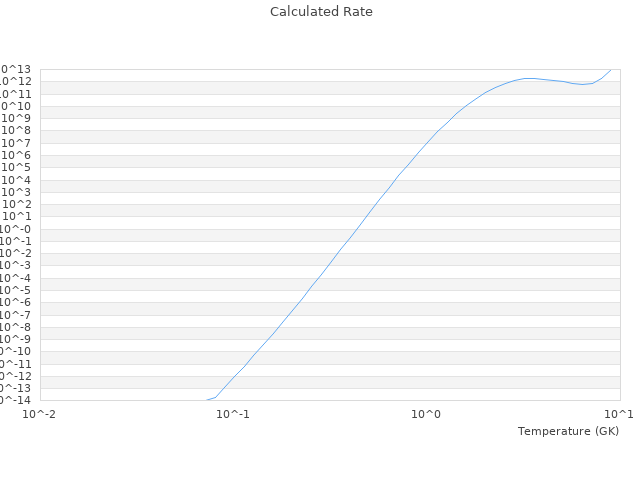

| View Graph | |
