Datapoints for nb77 -> p + zr76
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.445913e+06 |
| 0.15 | 4.533983e+06 |
| 0.2 | 1.098311e+07 |
| 0.3 | 4.236410e+07 |
| 0.4 | 1.182701e+08 |
| 0.5 | 2.715854e+08 |
| 0.6 | 5.460776e+08 |
| 0.7 | 9.964850e+08 |
| 0.8 | 1.688053e+09 |
| 0.9 | 2.695597e+09 |
| 1 | 4.102166e+09 |
| 1.5 | 2.038647e+10 |
| 2 | 6.072866e+10 |
| 2.5 | 1.344311e+11 |
| 3 | 2.454353e+11 |
| 3.5 | 3.921114e+11 |
| 4 | 5.688773e+11 |
| 4.5 | 7.683492e+11 |
| 5 | 9.831840e+11 |
| 6 | 1.436462e+12 |
| 7 | 1.903065e+12 |
| 8 | 2.387057e+12 |
| 9 | 2.916449e+12 |
| 10 | 3.539479e+12 |

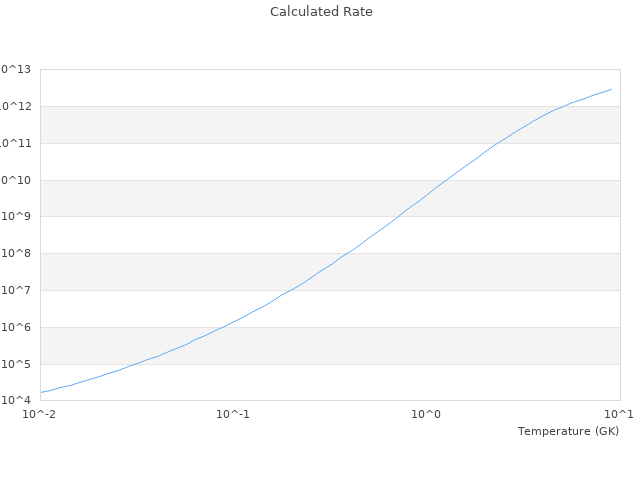

| View Graph | |
